inverted zig zag

About The System

The Richards-Wilcox Inverted Zig-Zag® Conveyor features:

  • Adjustable and removable load centers on 6″ increments. Shorter load centers allow for maximum productivity and control.
  • Modular components for exceptional precision and fast installation.
  • Minimal headroom requirements that maximize your production space.
  • Removable pendants for easy maintenance, replacement or reconfiguration.
  • Capacity ranging from 25 to 75 lbs. per load pin.

This solution is ideal for:

  • Electronics Manufacturing
  • Pin Systems
  • Pan Conveyor Assembly
  • Kitting Assembly
  • Tote Conveyors
  • Package Handling
inverted zig zag conveyor
inverted zig zag conveyor

Engineered For Evolution

Inverted Monorail Conveyor is engineered to evolve your factory.

Here’s how:

  • It eliminates drip pans and sanitary hooks. Richards-Wilcox’s Inverted Monorail Conveyor design makes messy drip pans and other “clean” equipment obsolete.

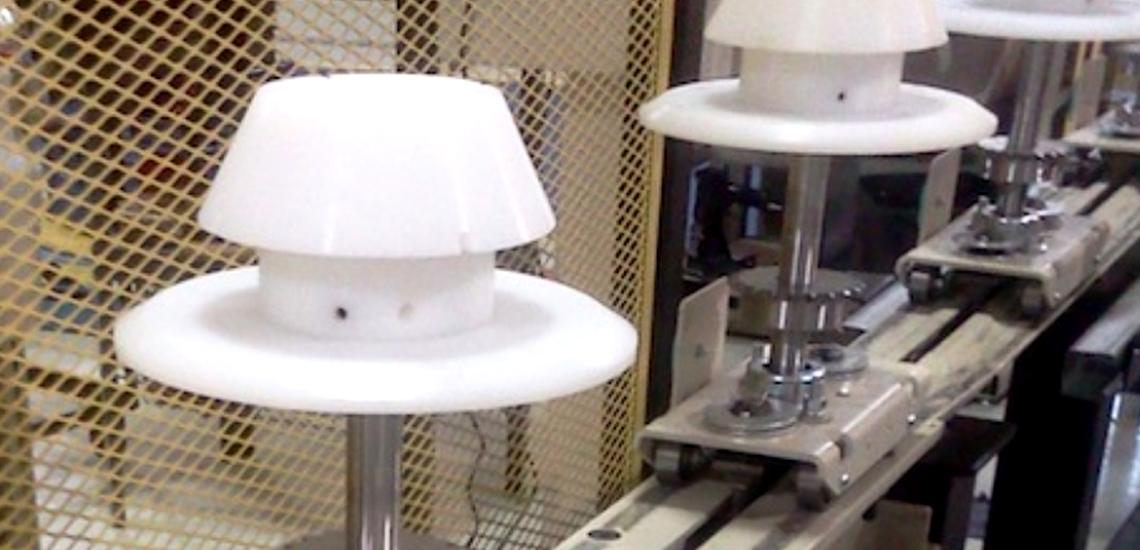

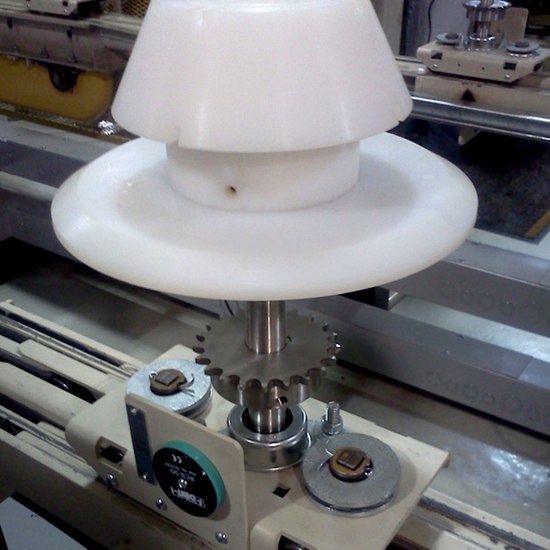

  • It extends chain and track life. Pivoting pendant allows for free rotation up and down vertical inclines with no torque or wear on chain assembly.
  • It reduces maintenance. Less friction and wear mean lower maintenance costs and downtime.
  • It reduces operational costs. Pendants last longer because they work better.
  • It increases production. Less downtime, less maintenance, cleaner operation, and lower conveyor costs all make your operation more productive.
